Automobile Condenser Aluminum Extruded Tube Microchannel For Oil Cooler

Name: Automobile Condenser Aluminum Extruded Tube Microchannel For Oil Cooler
Brand: Trumony
Price: 1 USD

China Automobile Condenser Aluminum Extruded Tube Microchannel For Oil Cooler wholesale

Brand Name : Trumony

Model Number : TR-T22013

Certification : CE,ISO,RoHS,UL

Place of Origin : China

MOQ : 1000kg

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 100000ton/Every Year

Delivery Time : 4~6wks with mold tooling time

Packaging Details : Export Standard Packing

Product name : Aluminum multiport flat tube

Alloy : 3003, 3102, 6106, 6105, etc.

Processing : Punching, Extrusion, Welding, Cutting etc.

Surface treatment : Mill finished, Zinc Spray , Anodizing etc.

Temper : HO/H24/H14/H112

Applications : Evaporator, Air conditioner , Car Radiator, Charge air cooler, Condenser, Oil cooler

Keyword : aluminum flat tube for condenser

OEM : YES

Payment term : 30% prepaid, balance before shipment

Package : Wooden case

Contact Now

Automobile Condenser Spare Parts Aluminum Extruded Microchannel Tube for Oil Cooler

Multiport Tube is an important spare part for auto condenser and evaporator.
Benefit from our own tooling center, lots of ready molds are with us.
Based on good channel flow design, coolant can run inside the tube and ensure high cooling efficiency.You can also design your own tube and send us the drawing through our sales representatives,we can do the Custom manufacturing based on your drawing.

Chemical composition

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	V	Ti
1050	≤0.25	≤0.40	≤0.05	≤0.05	≤0.05	---	≤0.05	≤0.05	≤0.03
1100	≤0.95(Si+Fe)		0.05~0.20	≤0.05	--	--	≤0.10	---	---
3102	≤0.40	≤0.70	≤0.1	0.05~0.4	---	---	≤0.3	---	≤0.10

It can be customized according to customers' request!

Mechanical Properties

Alloy	Temper	Tensile Strength	Yeild Strength	Elongation
1050	O/F/H111/H112	≥65MPa	≥200MPa	≥25%
1100	O/F/H111/H112	≥75MPa	≥200MPa	≥25%
3102	O/F/H111/H112	≥75MPa	≥200MPa	≥25%
3003	O/F/H111/H112	≥75MPa	≥200MPa	≥25%

Items	Range
Width	8mm~40mm
Thickness	1mm~5mm
Wall thickness	0.15mm~0.8mm
Thickness of zinc spraying	6g/mm²~15g/mm²
Fixed length	200mm~4000mm
Number of pores	3~30

It can be customized according to customers' request!

Applications:

Engine cooling and air conditioner system, such as radiator, condenser, oil cooler and heater, evaporator.

Home appliances electrics industries, such as HAVC heat exchangers, refrigerator, PTC heating unit, air conditioner;

New energy: Liquid cooling plate for EV battery / ESS battery.

Automobile Condenser Aluminum Extruded Tube Microchannel For Oil Cooler

FAQ:

Q: Are you a trading company or manufacturer?
A: Yes,we are a factory with more than 10 years history in this industry.

Q: What is your terms of payment ?
A: Normally 30% TT in advance, balance paid before shipment.

Q: How long does it take for samples and mass production?
A: Usually it will take 15-20 days for new molds and free samples (within 5 kg),;after confirmation, 25-30 days for mass production.

Q: OEM/ODM available?
A: Yes,we can!

Q: Could you provide sample?
A: Yes, We are honored to offer you samples for quality check.

Q: Is sample order accepted?
A: Yes,we accept sample order and we can provide design service!

Product Tags:

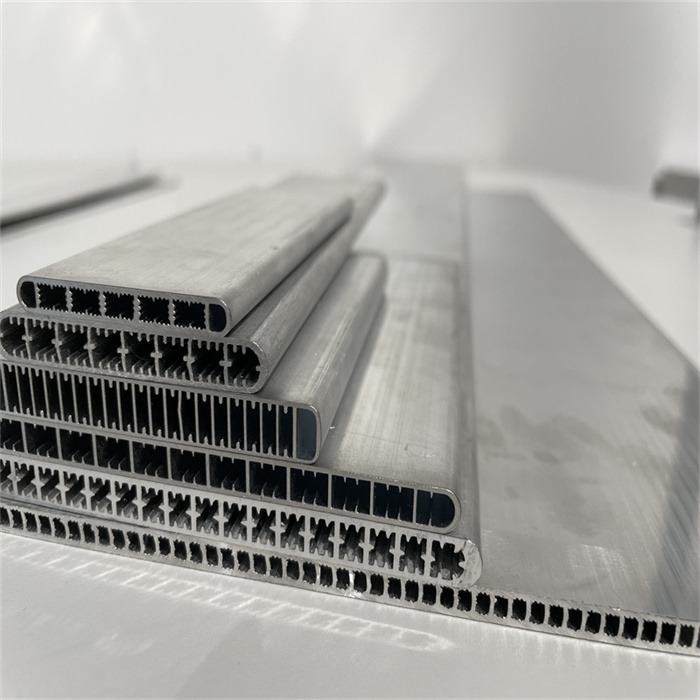

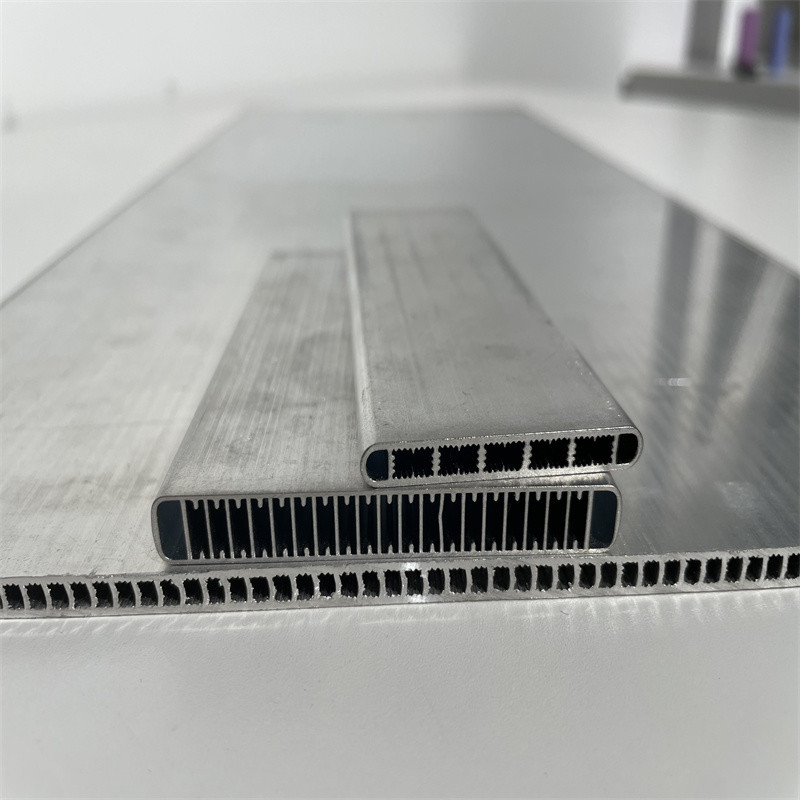

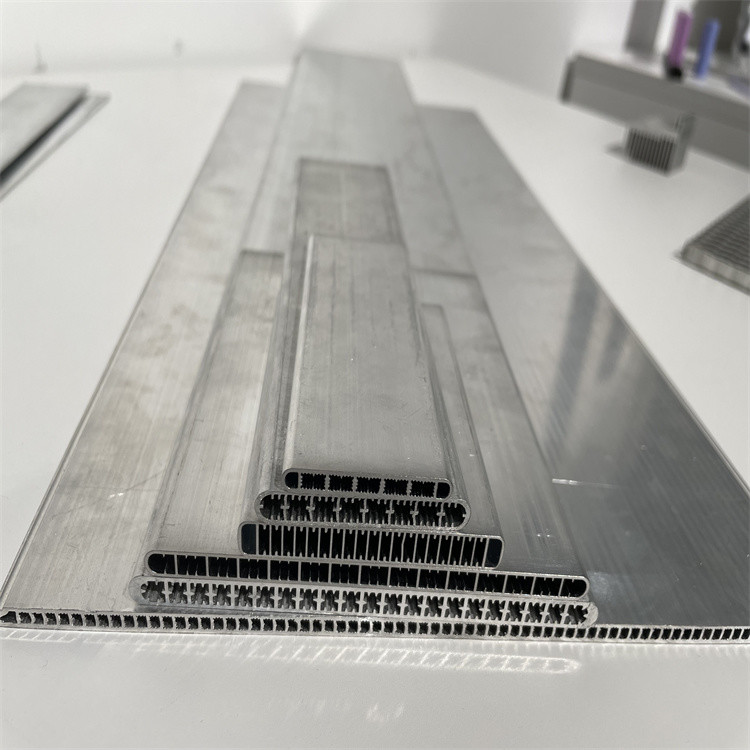

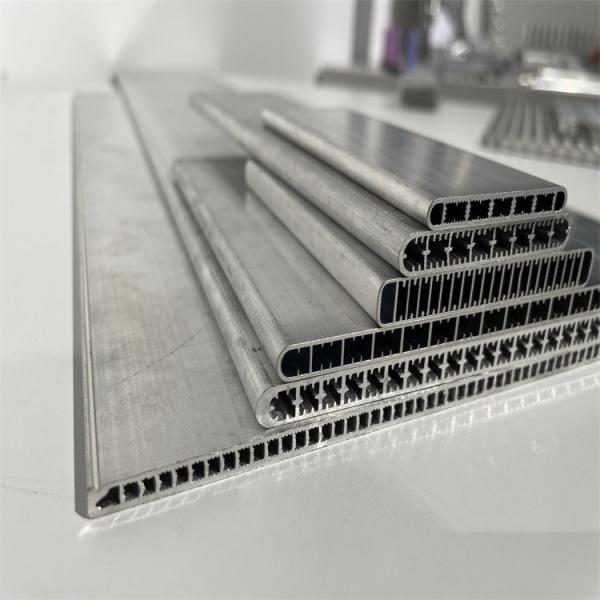

Automobile Condenser Aluminum Extruded Tube Microchannel For Oil Cooler Images
