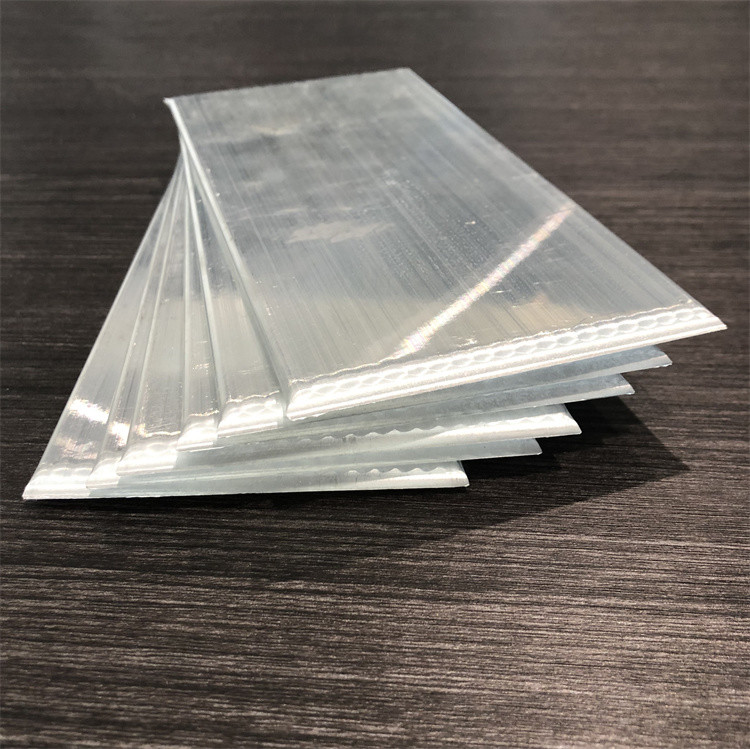

Custom Heat Pipe Aluminum Vapor Chamber
Description
Vapor Chamber is the single heat conducting element with the fastest heat conduction and the best thermal diffusivity at present.
Vapor Chamber can quickly transfer or diffuse the heat generated by the heat source and reduce the temperature of the heat source.
Vapor Chamber are also called hotplate, flat heat pipe. The structure of the hotplate is usually flat or flat shaped. Hotplate is a passive heat transfer element which uses evaporation and condensation of liquid to transfer heat and drives liquid circulation by wick structure.
The order of VC from outside to inside is shell, capillary structure, steam chamber and support structure. The shell is usually made of copper, aluminium, stainless steel and other metal materials.
Capillary structures are commonly used in wire mesh, trench, foam metal, sintered metal powder, metal fiber, carbon fiber and ceramics.
Internal working fluids (working fluids) commonly used are water, ammonia, acetone, methanol, ethanol, HFC refrigerant, carbon dioxide.
Technical Parameters
| Item | Custom Heat Pipe Aluminum Vapor Chamber |
| Dimension | 5*90*200mm |
| Material | Aluminium |
| Surface Treatment | coating |
| Application | Condensers Evaporators Oil coolers Radiators Heater cores |
Features:
Horizontally conduction
Passive components
High stability
Efficiency higher than heat pipe 10 times
FAQ:
1, Q: Are you manufacturer of VAPOR CHAMBER plate heat sink?
A: Yes, we are established in 2006. As a manufacturer welcome to visit our factory.
2, Q: Do you accept customized orders?
A: Yes, we do. Your customized orders are always welcomed. Please kindly offer us your technical performances or samples so that we can customize the products according to your preferences. About any further detail, please feel free to contact us.
3. Q: How can I get one quotation faster?
A: Pls offer details about your demands as more as possible,insulation thickness,over diameter,nominal voltage,working temperature,color,quantity,application,etc.
4. Q: If I can not offer above information,what should I do?
A: Try your best to offer more information,we will help you design suitable plate.
