Brazed 6mm Aluminum Cold Plate For New Energy Vehicle Battery

Trumony Aluminum Limited
Contact Now

Brazed 6mm Aluminum Cold Plate For New Energy Vehicle Battery

  • 1
  • 2

Brand Name : Trumony

Certification : TS16949 , ISO14001

Place of Origin : China

MOQ : 10pcs

Price : Negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 600,000 mt per year

Delivery Time : 15-30 working days after received your advance payment

Packaging Details : Standard export packaging like carton / wooden box

Colour : Silver

Surface coating : Mill finish or Anodize

Application : Water cooling, vehicle battery cooling

Thickness : 1-6mm

Length : Customized

Technology : Extrusion or brazed

Width : Customized

Product name : New Energy Vehicle Battery Cooling Aluminum Cooling Plate

MOQ : 1pc

Contact Now

New Energy Vehicle Battery Cooling Aluminum Cooling Plate


1. Description of Aluminum Cooling Plate

Production Process: Cold stamping - cleaning - spray flux - fixture clamp the product into the brazing furnace - brazing furnace after more than a dozen procedures (like automatic heating/ insulation/ cooling/ welding etc.) - do full inspection of air tightness test - cleaning (mainly for welding cleaning, polishing, drying) etc, which is total more than 20 steps procedures.


1) Cladding Material of aluminum alloy

Alloy Si Fe Cu Mn Mg Zn Zr Ti code
3003 0.6 0.7 0.05-0.20 1.0-1.5 0.1 0.05 0.03 1
3003+1%Zn 0.6 0.7 0.05-0.20 1.0-1.5 0.5-1.50 0.05 0.05 2
3003+1.5%Zn 0.6 0.7 0.05-0.20 1.0-1.5 1.0-2.0 0.05 0.05 3
3003+1.5%Zn+Zr 0.5-1.0 0.7 0.05-0.20 1.0-1.6 1.0-2.0 0.05-0.2 - 4
3003+0.5%Cu 0.6 0.7 0.30-0.70 1.0-1.5 0.10 0.05 0.1 5
3005 0.6 0.7 0.20-0.40 1.0-1.5 0.20-0.60 0.25 0.01 6


2) Core Material

Alloy Si Fe Cu Mn Mg Zn Zr Ti code
4343 6.8-8.2 0.8 0.25 0.1 0.2 0.05 1
4343+1%Zn 6.8-8.2 0.8 0.25 0.1 0.5-1.5 0.05 2
4045 9.0-11.0 0.8 0.3 0.05 0.2 0.2 3
4045+1%Zn 9.0-11.0 0.8 0.3 0.05 0.5-1.5 0.2 4
4004 9.0-10.5 0.8 0.25 0.1 1.0-2.0 0.2 0.2 5


3) Main mechanical of aluminum for welding heat exchanger system

Alloy Code temper Tensile Strength
Rm(MPa)
Yield Strength Rp0.2(Mpa) Extend Ratio
A50(%)
TR-010,TR-020,TR-030,TR-040,TR-050,TR-110,TR-310,TR-116,TR-316,TR-111,TR-313,TR-121,TR-131,TR-141,TR-150,TR-151,TR-156 Etc. O 95-135* ≥35* ≥15*
H14 140-185 ≥125 ≥1.5
H24 140-185 ≥125 ≥3.0
H16 185-225 ≥160 ≥1.0
H18 ≥185 - ≥0.5
TR-166 Etc.plate material H24 185-235 ≥150 ≥8
TR-116,TR-316 Etc.plate
material
H14 140-185 ≥125 ≥3
H24 140-185 ≥125 ≥8


2.Our advantages of 3003 Brazing New design aluminum ev cooling plate for battery cold:
1). From 2006, we have rich experience in this aluminum heat exchange area in China;
2). Good reputation in aluminum industry;
3). We have design teams to achieve your design idea and can give you professional suggestions;
4). Good price for bulk order;
5). Good experience cooperation with big clients in the world;
6). With Certificate like ISO9001-2008;
7). Sample order can accept;
8). High performance cost ratio;
9). Fast delivery time and resolve problem attitude.


3. Terms and conditions:
1), Trade terms: CIF / CFR / FOB/ EXW
2), Payment: TT 30% before production + 70% before shipment or against copy of BL;
or 100% Irrevocable L/C at sight etc.
3), Production time: Normally it is about 10-30 days.

4. FAQ:
Q: Are you a trading company or manufacturer?
A:Yes,we are a factory with more than 10 years history in this industry.


Q: What is your terms of payment ?
A: Normally 30% TT in advance, balance paid before shipment.


Q: How long does it take for samples and mass production?
A: Usually it will take 15-20 days for new moulds and free samples (within 5 kg),;
after confirmation, 25-30 days for mass production.


Q:OEM/ODM available?
A:Yes,we can!


Q:Could you provide sample?
A:Yes, We are honored to offer you samples for quality check.


Q:Is sample order accepted?
A:Yes,we accept sample order and we can provide design service!

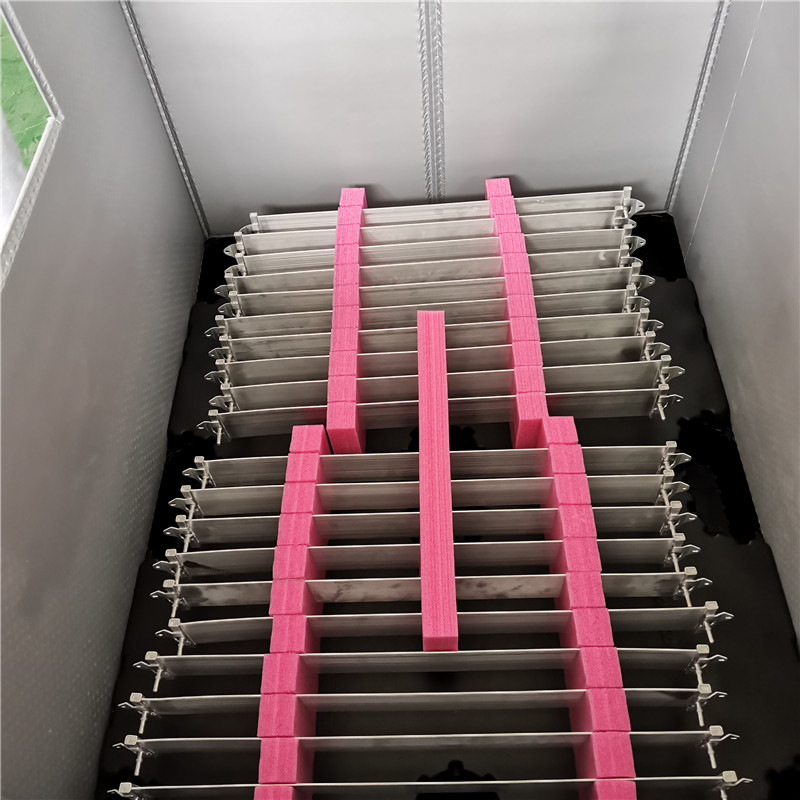

Brazed 6mm Aluminum Cold Plate For New Energy Vehicle Battery

Brazed 6mm Aluminum Cold Plate For New Energy Vehicle Battery
