TR-ACT010,TR-ACT131,TR-ACT141 Steel Clad Aluminum / Aluminium Base Tube With Certification TS16949-2008
Introduction
Our companies adhere to the "never lax quality control, never-ending process improvement, eternal pursuit of customer satisfaction," the quality policy, with excellent talents, advanced technology, sophisticated equipment, scientific management, quality products and thoughtful service to participate in market competition. We are willing to negotiate trade with friends at home and abroad, work together to create a better tomorrow!
Specification of base tube:
1) Steel Alloy: DC01 etc.,
2) Aluminum alloy: 1079 etc.,
3) Steel thickness: 1.5mm etc.,
4) aluminum thickness: 0.04-0.095mm
5) Width: 219mm etc.,
6) Height:19mm etc.,
7) Length: 9000-14500mmm
8) Temper: HO
9) Other sizes is available according to customer's request
Description of our production
Material of Steel(DC01 standard):
| Content(%) | C | Si | Mn | P | S | Alta |
| Steel | ≤0.12 | ≤0.03 | ≤0.6 | ≤0.045 | ≤0.045 | ≥0.02 |
Material of Aluminum(clad material 1079):
| Element | Si | Fe | Cu | Mn | Mg | Cr | Zn | Bi | Zr | Ti | Al |
| Max. | 0.85 | 0.45 | 0.05 | 0.03 | 0.03 | 0.05 | 0.03 | - | 0.05 | 0.03 | Rem |
| Min. | 0.75 | 0.36 | - | - | - | - | - | - | - | - | - |
Base tube Performance:DC01 clad with Special alloy 1079
| Steel tube size | Size Tolerance | Steel tube straightness | Torsion resistance | Kerf Skewness | Thickness of aluminum |
| width | thickness | length |
| 219mm*19mm*1.5* 10562/9562mm | ±0.25mm | ±0.04mm | ±3mm | 0.05mm Per Meter | 0.5°per Meter | ±1.5mm | 60-90μm |
| Eddy current inspection | 100% tested | Pressure Test | 100% tested for 20 Sec.At 0.25Mpa |
FAQ:
1, Q: Are you a trade company or a manufacturer?
A:Yeah,we are manufacturer having 12 years' experience in building expansion joints.
2, Q: Do you have any advantages attract me to choose your products?
A: Rich experience in large projects ,state-of-the-art Design and competitive price.
3. Q:Would you accept OEM service?
A: Yes,OEM is acceptable,welcome to be our best cooperator.
4, Q: Could I get samples from you?
A: Yeah,free samples are available according to your requirements, but you just need to pay for the delivery.
Our advantage:
1. Since 1988, we have rich experience in this industry in China;
2. Good reputation in Aluminum and steel clad aluminum Areas;
3. We start our productions from aluminum ingot,so we can control the quality as well;
4. We have our own development department for new material research;
5. Good experience and cooperation with big client in the world;
6. With Certificate TS16949, ISO14001 and OHSAS 18001;
7. High performance cost ratio;
8. Fast delivery time;
9. Good communication skills, and good service and understandings for customers;.
Product Tags:
|
|

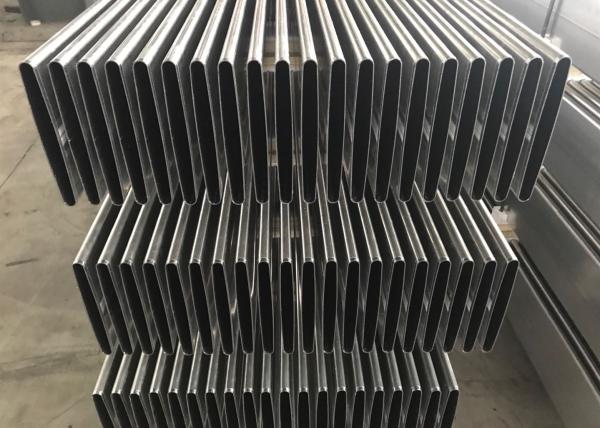

ACC Steel Clad Aluminum / Aluminium Base Tube With Certification Images
|
