Cold Rolled Aluminum Roof Coil Grade 1050 / 1060 / 1100 Industry Insulation

  • 1
  • 2

Brand Name : Trumony

Model Number : TR-1000 , 3000

Certification : ISO9001-2008

Place of Origin : China

MOQ : 5 Ton

Price : Negotiation

Supply Ability : 800 ,000 Per Year

Delivery Time : 30 Working Days

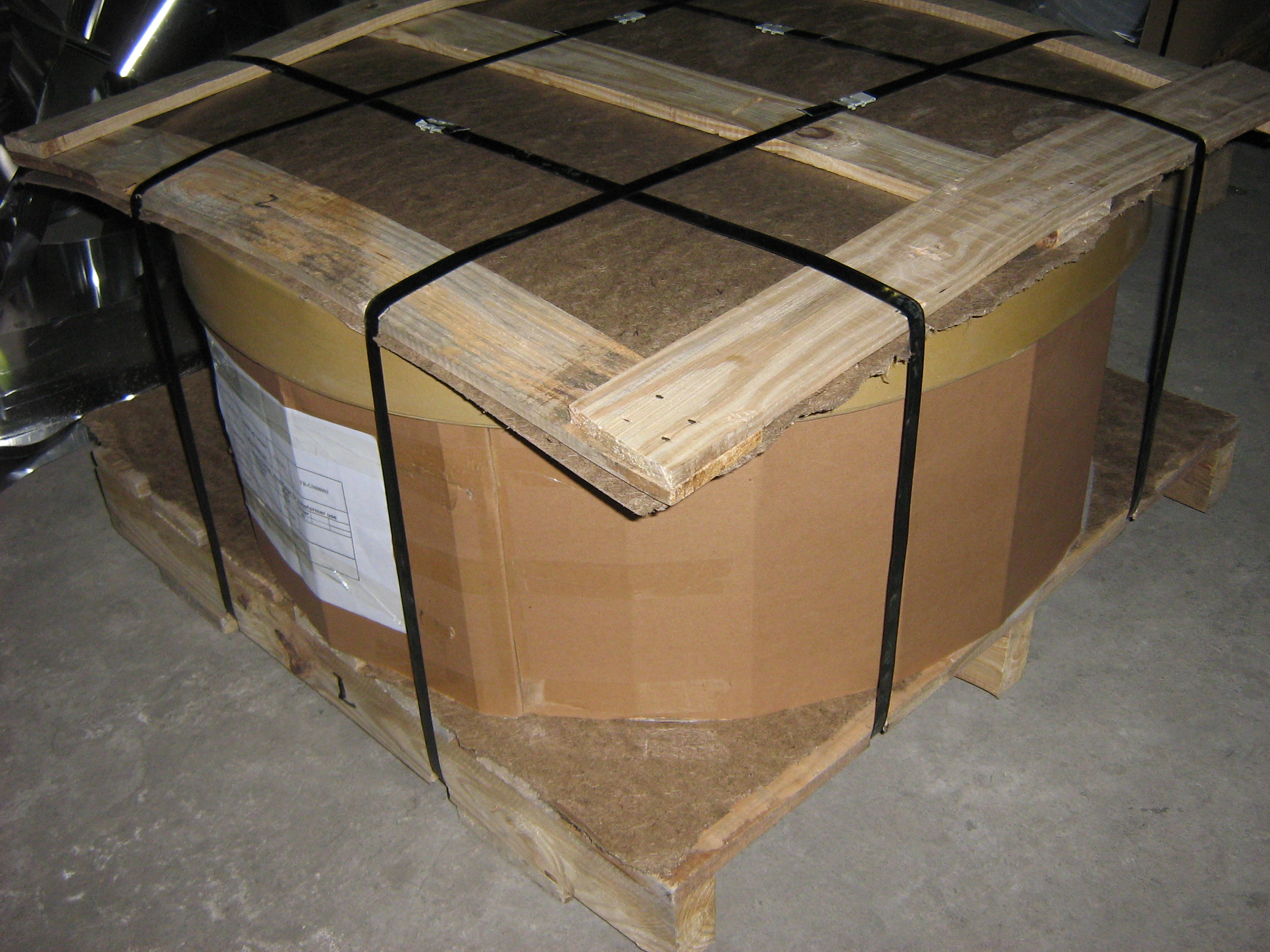

Packaging Details : Standard Export Packages

Application : ,Construction

Temper : O - H 112

Thickness : 0.2 - 3.0

Width : 30mm to 2300mm

Feature Of Process : Cold Rolled

Contact Now

Mirror Embossed Polish Finished Aluminium Coil

Product Description
Product Specification
Grade

1000 Series: 1050 1060 1100

3000 Series: 3003 3004 3105

5000 Series: 5052 5605,5083

6000 Series: 6061 6063

8000 Series: 8011 8021 8079
Thickness 0.20-8.00mm
Width 2400mm max.
Grade 1000,3000,5000,6000,8000series
Coil ID 75mm, 150mm, 200mm, 300mm, 400mm, 508mm or negotiable
Coil weight 1000-5000kgs
Coil OD 1700mm max.
Temper O, H12, H14, H16, H111, H22 ,H24, H26, H28,T4, T6,etc.
Chemical Composition
Grade Si Fe Cu Mn Mg Cr Ni Zn Al
1050 0.25 0.4 0.05 0.05 0.05 - - 0.05 99.5
1060 0.25 0.35 0.05 0.03 0.03 - - 0.05 99.6
1070 0.2 0.25 0.04 0.03 0.03 - - 0.04 99.7
1100 Si+Fe:0.95 0.05-0.2 0.05 - - 0.1 - 99
1200 Si+Fe:1.00 0.05 0.05 - - 0.1 0.05 99
1235 Si+Fe:0.65 0.05 0.05 0.05 - 0.1 0.06 99.35
3003 0.6 0.7 0.05-0.2 1.0-1.5 - - - 0.1 remains
3004 0.3 0.7 0.25 1.0-1.5 0.8-1.3 - - 0.25 remains
3005 0.6 0.7 0.25 1.0-1.5 0.20-0.6 0.1 - 0.25 remains
3105 0.6 0.7 0.3 0.30-0.8 0.20-0.8 0.2 - 0.4 remains
3A21 0.6 0.7 0.2 1.0-1.6 0.05 - - 0.1 remains
5005 0.3 0.7 0.2 0.2 0.50-1.1 0.1 - 0.25 remains
5052 0.25 0.4 0.1 0.1 2.2-2.8 0.15-0.35 - 0.1 remains
5083 0.4 0.4 0.1 0.40-1.0 4.0-4.9 0.05-0.25 - 0.25 remains
5154 0.25 0.4 0.1 0.1 3.1-3.9 0.15-0.35 - 0.2 remains
5182 0.2 0.35 0.15 0.20-0.50 4.0-5.0 0.1 - 0.25 remains
5251 0.4 0.5 0.15 0.1-0.5 1.7-2.4 0.15 - 0.15 remains
5754 0.4 0.4 0.1 0.5 2.6-3.6 0.3 - 0.2 remains
6061 0.40-0.8 0.7 0.15-0.40 0.15 0.8-1.2 0.04-0.35 - 0.25 remains
6063 0.20-0.6 0.35 0.1 0.1 0.45-0.9 0.1 - 0.1 remains
6082 0.7-1.3 0.5 0.1 0.40-1.0 0.6-1.2 0.25 - 0.2 remains
6A02 0.50-1.2 0.5 0.20-0.6 Or Cr0.15-0.35 0.45-0.9 - - 0.2 remains
8011 0.50-0.9 0.6-1.0 0.1 0.2 0.05 0.05 - 0.1 remains
Temper
F processing state
H strain hardening state
O annealing
T heat treatment state
H112 pure state of strain hardening, adjustment has been made to degree of strain hardening and annealing
T4 solid solution treatment and natural efficiency to achieve sufficient stability condition
T5 artificial aging condition of the reentry after high temperature thermal cooling
T6 artificial aging state after solid solution treatment

Cold Rolled Aluminum Roof Coil Grade 1050 / 1060 / 1100 Industry Insulation
