4343 / 3003 + 0.5% Cu Aluminum Heat Transfer Plates In Coil For Condenser

Name: 4343 3003 05 Cu Aluminum Heat Transfer Plates In Coil For Condenser
Brand: Trumony
Price: 1 USD

China 4343 / 3003 + 0.5% Cu Aluminum Heat Transfer Plates In Coil For Condenser wholesale

Brand Name : Trumony

Model Number : TR- 4343/3003+0.5%Cu/7072

Certification : ISO1901-2008

Place of Origin : China

MOQ : 5 Tons

Price : Negociable

Payment Terms : L/C, T/T

Supply Ability : 800,000 per a year

Delivery Time : 30 working days

Packaging Details : Standard Export Packaging

Alloy : 4343/3003+0.5%Cu/7072

Clad Layer : 4343,7072

Type : Brazing

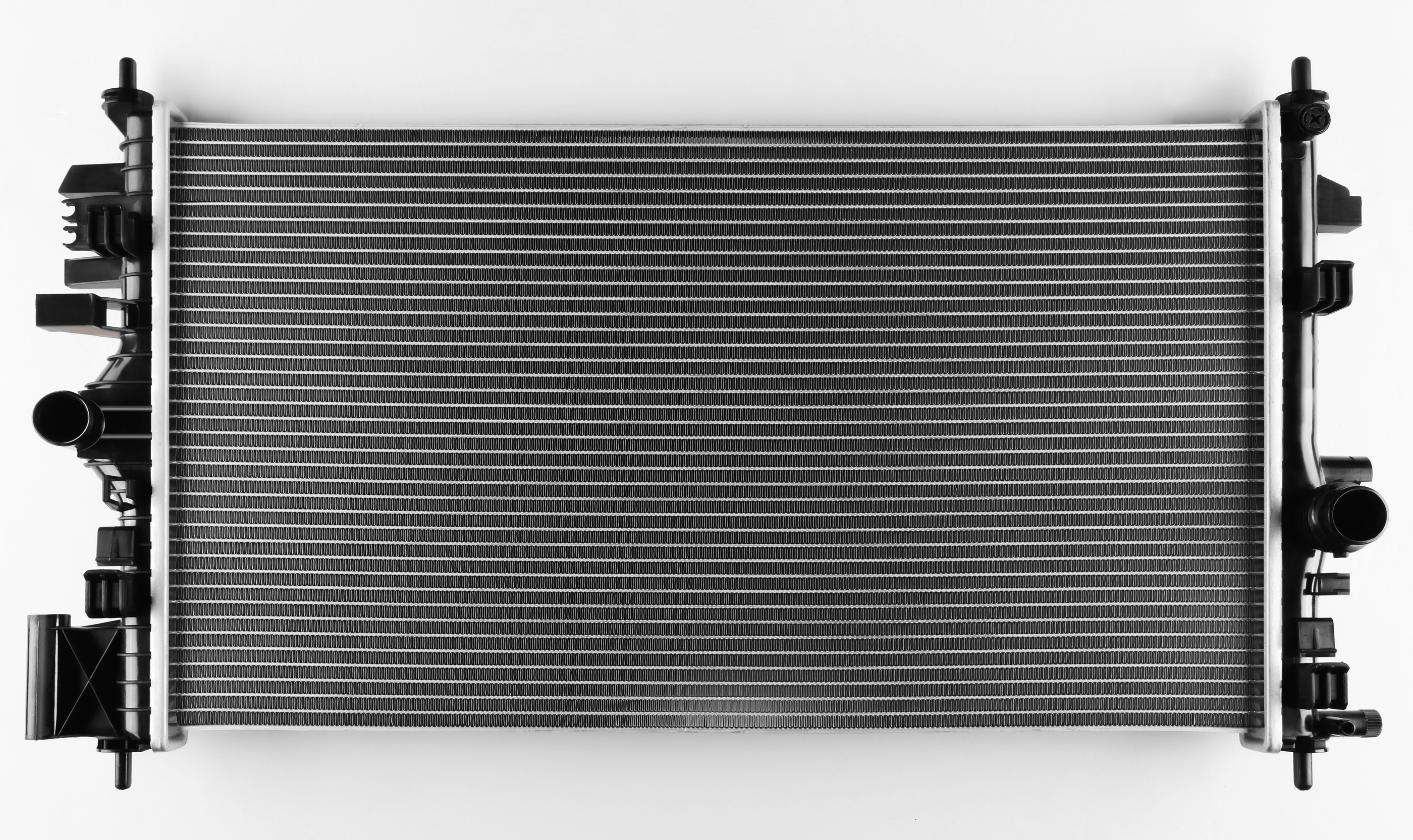

Application : Radiator

Contact Now

Experienced R&D team , we have our own R&D center which provides our related departments with newest & updated technique. We are also willing to offer our customers help to meet the change of HVAC and engine cooling industry.

We are dedicated to offer heat transfer market with world-class quality products and technical support for all manufacturers of heating exchanger and heater in the world.

We insist on the market-oriented and customer-centric principle and pursue the benign interaction, faith cooperation and win-win policy with customers and suppliers, so as to realize the development and growth of our company.
Specification

	Products name	Alloy	Thickness	Width	Temper	Cladding Rate	Applicate
2	Aluminum Heat Transfer coiled plate	4343/3003+0.5%Cu/7072	1.6mm	250mm	HO	10%	Radiator

Main mechanical of aluminum alloy and composite-material for welding heat exchanger

Alloy Code	temper	Tensile Strength Rm(MPa)	Yield Strength Rp_0.2(Mpa)	Extend Ratio A₅₀(%)
TR-010,TR-020,TR-030,TR-040,TR-050,TR-110,TR-310,TR-116,TR-316,TR-111,TR-313,TR-121,TR-131,TR-141,TR-150,TR-151,TR-156 Etc.	O	95-135*	≥35*	≥15*
	H14	140-185	≥125	≥1.5
	H24	140-185	≥125	≥3.0
	H16	185-225	≥160	≥1.0
	H18	≥185	-	≥0.5
TR-166 Etc.tube material	H24	185-235	≥150	≥8
TR-116,TR-316 Etc.tube material	H14	140-185	≥125	≥3
TR-116,TR-316 Etc.tube material	H24	140-185	≥125	≥8

Remark:“*”in the above file means the tensile strength will be 120-150Mpa,yield strength will be ≥45Mpa,and elongation will be ≥20% if the material of TR-050,TR-150,TR-151,TR-156 etc. with temper O contain Cu..

Additional: We can produce special specification according to customer’s request.
